    3/8" 3/4" 3/16" 1/8 Inch 1/16" 6mm Ball Nose Router Bits

    Ask Lasest Price
    Brand Name : RLD Tools
    Model Number : HRC55-R3
    Price : EXW 4.5SD/negotiable
    Payment Terms : T/T/PayPal/Credit Card
    Supply Ability : 1000000pcs/month
    Delivery Time : 5-7 work days
    • Product Details
    • Company Profile

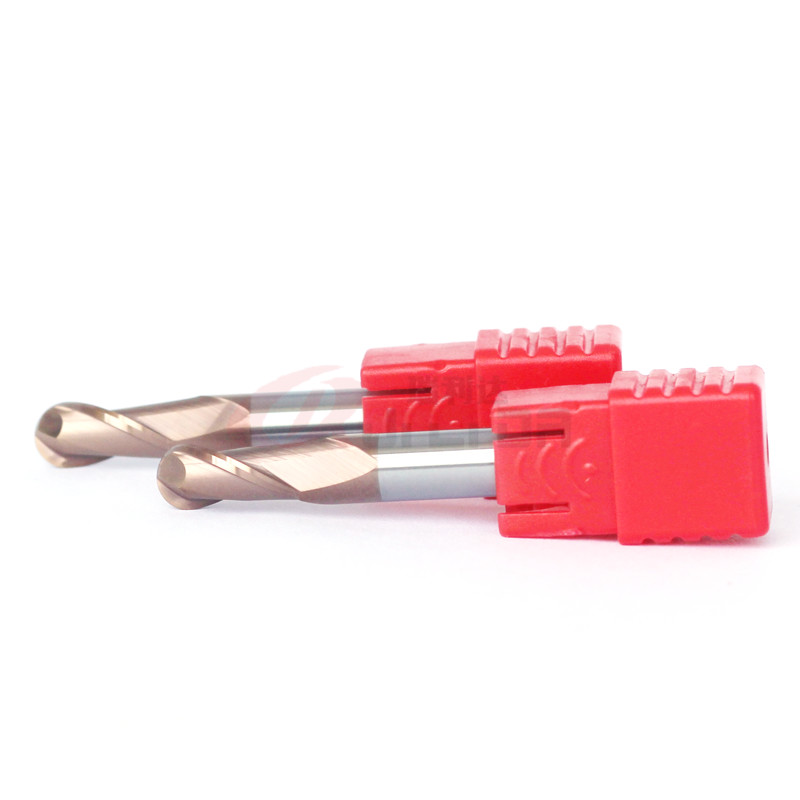

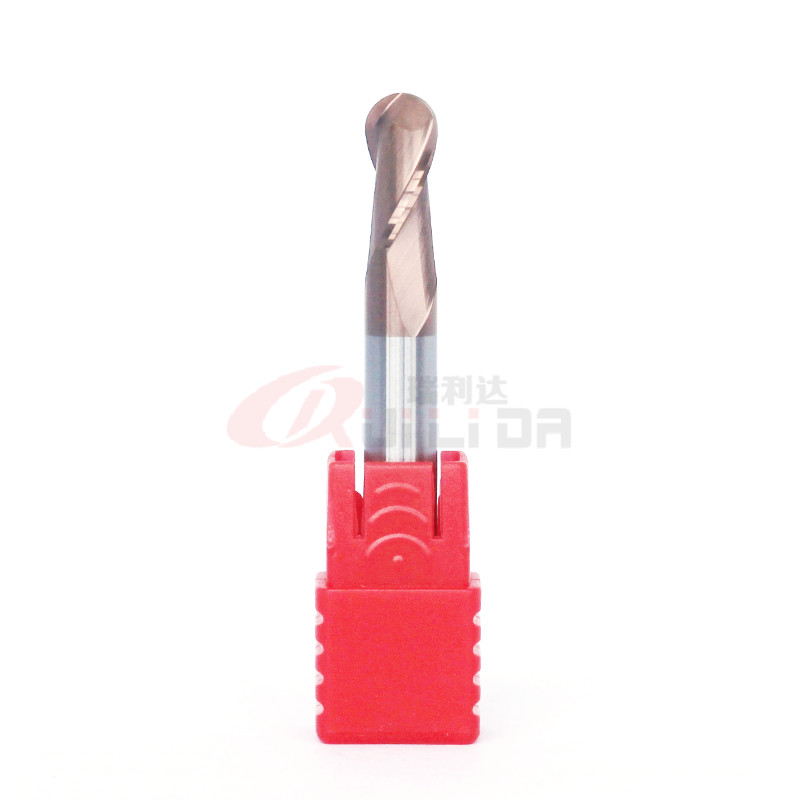

    3/8" 3/4" 3/16" 1/8 Inch 1/16" 6mm Ball Nose Router Bits

    HRC55 Solid Carbide Ball Nose Router Bits 6mm Diameter

    R3 CNC Milling Cutter for Steel China Manufacturers


    Our company only cooperates with big reliable carbide rod suppliers.


    Only sells the carbide tools produced by ourselves.


    So don't need to worry about the stability of quality.


    More quantity will enjoy more discount.


    We have PG1000, Omega inspection facilities to ensure the precision of each tool


    We are exporting to more than 45 countries all over the world now.


    We can do OEM


    Product nameRLD HRC55 2 flutes 6mm ball nose end mill
    SpecificationR3*12*50*6D*2F
    Suitable forSuper alloy steel, iron, cast iron, Stainless Steel, etc.
    Machine typeCNC Milling Machine
    Flutes2
    CoatingAlTiSiN
    Helix30 degree
    Co12%
    HRA92.2
    TRS Min(N/mm²)3800
    ToleranceWithin 0/-0.02mm
    Processing machineANCA/

    Carbide Raw Material Introduction


    End mill gradeCarbide rodGrain sizeHRAApplication
    HRC50ZY10EF0.6μm91.8

    Aluminum, iron, low alloy steel,

    general steel under hardness HRC45

    HRC55WF250.6μm92.2Cast Iron, Alloy Steel, General steel under hardness HRC50
    HRC60GU25UF0.4μm92.5Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
    HRC65GU0920.2μm93.5Alloy Steel, Hardened Steel under hardness HRC62

    Coating Introduction


    Coating nameColorThicknessHardnessFrictionThe Max ℃
    AlTiNBlack1.5-333000.4900
    AlTiSiNCopper1.5-335000.351000
    TiAlNDark Violet1-330000.4800
    Blue NanoBlue2-432000.451000
    AlCrNDark grey1.5-335000.31250
    DLCBlack1-318000.1350
    DiamondBlack2-12100000.02-0.1650
    Coating can be customized

    RLD HRC55 2F Carbide Ball Nose End Mill Standard Size
    Flute Dia(mm)Overall Length(mm)Cutting Length(mm)Shank Dia(mm)Flutes
    150242
    1.550342
    250442
    2.550542
    350632
    3507.542
    3.550942
    4501042
    4751442
    41001842
    5501352
    5501362
    6501562
    6752162
    61002762
    8602082
    8753082
    81003582
    107520102
    1010020102
    127524122
    1210024122
    1410028142
    1610032162
    1810036182
    2010040202
    61501262
    81501682
    1015020102
    1215024122
    1415028142
    1615032162
    1815036182
    2015040202

    3/8" 3/4" 3/16" 1/8 Inch 1/16" 6mm Ball Nose Router Bits3/8" 3/4" 3/16" 1/8 Inch 1/16" 6mm Ball Nose Router Bits


    FAQ

    1. Are you a manufacturer or trading company?

    We are a professional manufacturer of carbide tools which established in 2011.


    2. Which CNC grinding machines do you use?

    All of our carbide end mills are produced by ANCA (Australia) & (Germany) machines.


    3. Which shipping method do you usually use?

    We usually send goods by express like FedEx, UPS, DHL, EMS, ARAMEX, TNT, ETC.

    For large amount, we can send by air or by sea.


    4. How about the delivery time?

    For stock items, we can dispatch within 2 business days after receiving payment.

    For the out-of-stock items, it depends on the quantity.

    Usually is around 5-7 business days.


    5. Which payment methods do you accept?

    We accept T/T/Credit Card/PayPal, etc.


    6. Can you produce special carbide tools?

    Yes, we can produce customized carbide tools according to your drawings or samples.


    7. Do you attend international exhibitions?

    Yes, we had attended exhibitions in Indonesia, India, Russia, Thailand, Vietnam, Brazil, etc.
