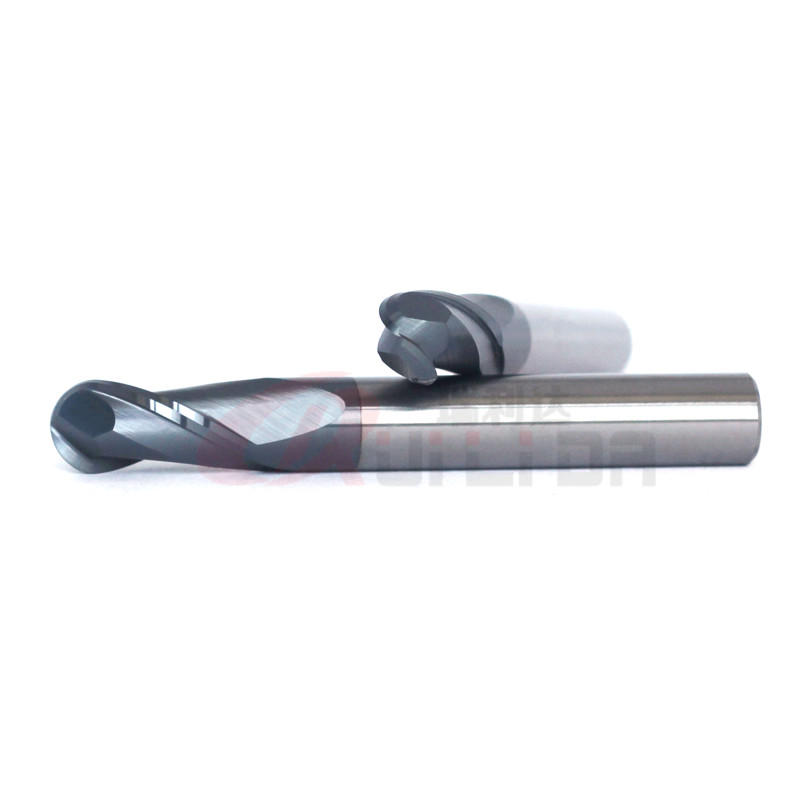

    3/8" 1/4" Ball Nose Carbide End Mill Cutter 8mm Ball Nose Cutter For Steel

    Ask Lasest Price
    Brand Name : RLD Tools
    Model Number : HRC50-R4
    Price : EXW 6.6USD/negotiable
    Payment Terms : T/T/PayPal/Credit Card
    Supply Ability : 600000pcs/month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    3/8" 1/4" Ball Nose Carbide End Mill Cutter 8mm Ball Nose Cutter For Steel

    HRC50 Ball Nose milling Cutter 8mm Solid Carbide End Mill Cutter With Reasonable Price


    We only cooperate with big reliable carbide rod suppliers.
    Only sell the carbide tools produced by ourselves.
    So don't need to worry about the stability of quality.


    Product nameRLD HRC50 2 flutes 8mm ball nose end mill
    SpecificationR4*16*60*8D*2F
    Suitable forSteel, iron, cast iron, etc.
    Machine typeCNC Milling Machine
    Flutes2
    CoatingAlTiN
    Helix30°
    Co10%
    HRA91.8
    TRS Min(N/mm²)4000
    ToleranceWithin 0/-0.02mm
    Processing machineANCA/

    Carbide Raw Material Introduction


    End mill gradeCarbide rodGrain sizeHRAApplication
    HRC50ZY10EF0.6μm91.8

    Aluminum, iron, low alloy steel,

    general steel under hardness HRC45

    HRC55WF250.6μm92.2Cast Iron, Alloy Steel, General steel under hardness HRC50
    HRC60GU25UF0.4μm92.5Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55
    HRC65GU0920.2μm93.5Alloy Steel, Hardened Steel under hardness HRC62

    Coating Introduction


    Coating nameColorThicknessHardnessFrictionThe Max ℃
    AlTiNBlack1.5-333000.4900
    AlTiSiNCopper1.5-335000.351000
    TiAlNDark Violet1-330000.4800
    Blue NanoBlue2-432000.451000
    AlCrNDark grey1.5-335000.31250
    DLCBlack1-318000.1350
    DiamondBlack2-12100000.02-0.1650
    Coating can be customized

    RLD HRC50 2F Ball Nose End Mill Standard Size
    Flute Dia(mm)Overall Length(mm)Cutting Length(mm)Shank Dia(mm)Flutes
    150242
    1.550342
    250442
    2.550542
    350632
    3507.542
    3.550942
    4501042
    4751442
    41001842
    5501352
    5501362
    6501562
    6752162
    61002762
    8602082
    8753082
    81003582
    107520102
    1010020102
    127524122
    1210024122
    1410028142
    1610032162
    1810036182
    2010040202
    61501262
    81501682
    1015020102
    1215024122
    1415028142
    1615032162
    1815036182
    2015040202

    3/8" 1/4" Ball Nose Carbide End Mill Cutter 8mm Ball Nose Cutter For Steel3/8" 1/4" Ball Nose Carbide End Mill Cutter 8mm Ball Nose Cutter For Steel


    FAQ

    1. Are you a manufacturer or trading company?

    We are a professional manufacturer of carbide tools which established in 2011.


    2. Which CNC grinding machines do you use?

    All of our carbide end mills are produced by ANCA & machines.

    They are imported from Australia and Germany.


    3. Which shipping method do you usually use?

    We usually send goods by express like FedEx, UPS, DHL, EMS, TNT, ETC.

    For large amount, we can send by air or by sea.

    We also can send products to your shipping agent in China.


    4. How about the delivery time?

    For stock items, we can dispatch within 2 business days after receiving payment.

    For the out-of-stock items, it depends on the quantity.

    Usually is around 5-7 business days.


    5. Which payment methods do you accept?

    We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.


    6. Can you produce special carbide tools?

    Yes, we can produce special carbide tools according to your drawings or samples.


    7. Do you attend international exhibitions?

    Yes, we had attended exhibitions in Indonesia, India, Russia, Thailand, Vietnam, etc.


    8. Do you have any discounts?

    Yes, we have discounts for large quantities.


    9. Which inspection machines do you use?

    We are us PG1000 and OMEGA for checking the tolerance.
