Changzhou Ruilida Tools Co., Ltd.
4 Years
| Ask Lasest Price | |
| Brand Name : | RLD Tools |
| Model Number : | HRC50-8mm |
| Price : | EXW 5.5USD/negotiable |
| Payment Terms : | T/T/PayPal/Credit Card |
| Supply Ability : | 100000pcs/month |
| Delivery Time : | 6-7 work days |

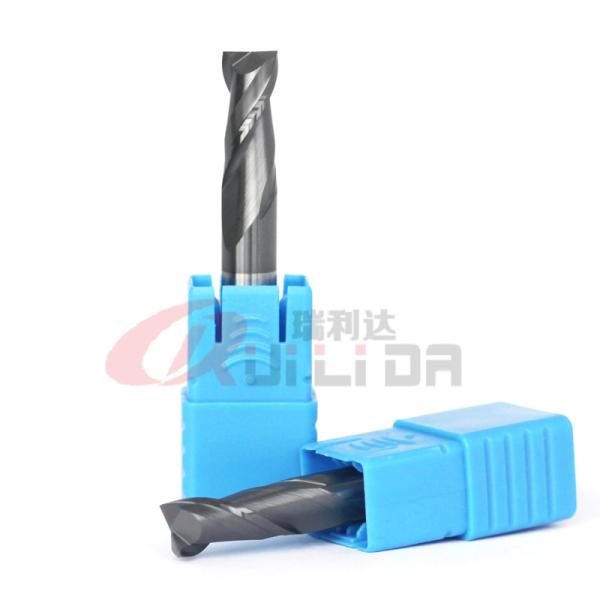

China Factory HRC50 2 Flute 8mm Tungsten Solid Carbide CNC Milling bits with AlTiN Coating
| Product name | RLD HRC50 2 flutes 8mm Flat Carbide End Mill |
| Specification | 8*20*60*8D*2F |
| Suitable for | Iron, steel under the hardness HRC45 |
| Machine type | CNC milling machine |
| Flutes | 2 |
| Coating | AlTiN/Customized |
| Helix Angle | 35° |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 4000 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | ZY10EF | 0.6μm | 91.8 | Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized |
| RLD HRC50 Square End Mill Standard Size | ||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 1 | 50 | 2.5 | 4 | 2/4 |
| 1.5 | 50 | 4 | 4 | 2/4 |
| 2 | 50 | 5 | 4 | 2/4 |
| 2.5 | 50 | 6.5 | 4 | 2/4 |
| 3 | 50 | 7.5 | 3 | 2/4 |
| 3 | 50 | 7.5 | 4 | 2/4 |
| 3.5 | 50 | 9 | 4 | 2/4 |
| 4 | 50 | 10 | 4 | 2/4 |
| 4 | 75 | 14 | 4 | 2/4 |
| 4 | 100 | 18 | 4 | 2/4 |
| 5 | 50 | 13 | 5 | 2/4 |
| 5 | 50 | 13 | 6 | 2/4 |
| 6 | 50 | 15 | 6 | 2/4 |
| 6 | 75 | 21 | 6 | 2/4 |
| 6 | 100 | 27 | 6 | 2/4 |
| 8 | 60 | 20 | 8 | 2/4 |
| 8 | 75 | 30 | 8 | 2/4 |
| 8 | 100 | 35 | 8 | 2/4 |
| 10 | 75 | 25 | 10 | 2/4 |
| 10 | 100 | 40 | 10 | 2/4 |
| 12 | 75 | 30 | 12 | 2/4 |
| 12 | 100 | 45 | 12 | 2/4 |
| 14 | 100 | 45 | 14 | 2/4 |
| 16 | 100 | 45 | 16 | 2/4 |
| 18 | 100 | 45 | 18 | 2/4 |
| 20 | 100 | 45 | 20 | 2/4 |
| 6 | 150 | 35 | 6 | 2/4 |
| 8 | 150 | 50 | 8 | 2/4 |
| 10 | 150 | 55 | 10 | 2/4 |
| 12 | 150 | 60 | 12 | 2/4 |
| 14 | 150 | 65 | 14 | 2/4 |
| 16 | 150 | 65 | 16 | 2/4 |
| 18 | 150 | 65 | 18 | 2/4 |
| 20 | 150 | 75 | 20 | 2/4 |
More pictures
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools which established in 2011.
2. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machine.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
For large quantities, we can send by air or by sea.
We also can send the goods to your shipping agent in China.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance on Alibaba (credit card), etc.
For customized tools, 30% in advance, the balance is paid before
shipment.
6. Can you produce special carbide tools?
Yes, our company can produce customized sizes of carbide tools.
7. Do you have any discounts?
Yes, more quantity will enjoy more discount.
Please send an inquiry to us for more details.
8. What kind of grinding wheels do you use?
We are using WINTER brand grinding wheels imported from Germany.
|
|
