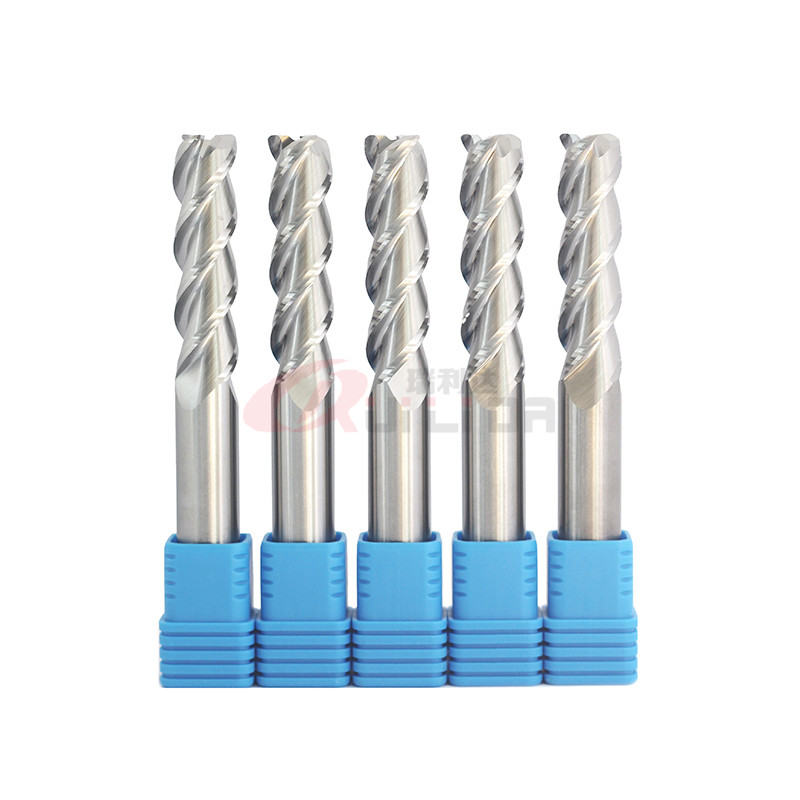

HRC50 3 Flute Aluminum End Mill 12R1 Extra Long Solid Carbide Corner Radius Endmill
The advantage of our Aluminum End Mill with corner radius:
1. Our company only use original carbide rod
2. They are produced by advanced grinding machines ANCA &
3. Stock items with short delivery time.
4. Quality of our end mill can be compared with Korean brands like YG, JJ, etc.
| Product name | RLD HRC50 3 flute Corner Radius Aluminum End Mill 12R1 |
| Size | 12R1×45×100×12D×3F |
| Suitable for | Aluminum, plastic, brass, acrylic, etc. |
| Feature | Finishing |
| Flute Number | 3 |
| Coating | Uncoated |
| Helix angle | 45 degree |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 4000 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 | Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| The coating also can be customized |
| RLD 3F HRC50 Corner Radius Aluminum End Mill Standard Size | ||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 1R0.2 | 50 | 3 | 4 | 3 |
| 2R0.2 | 50 | 6 | 4 | 3 |
| 3R0.2, 0.5 | 50 | 9 | 4 | 3 |
| 4R0.2, 0.5 | 50 | 12 | 4 | 3 |
| 6R0.5, 1 | 50 | 18 | 6 | 3 |
| 6R0.5, 1 | 75 | 24 | 6 | 3 |
| 60.5, 1 | 100 | 30 | 6 | 3 |
| 8R0.5, 1 | 60 | 24 | 8 | 3 |
| 8R0.1, 1 | 75 | 32 | 8 | 3 |
| 8R0.5, 1 | 100 | 40 | 8 | 3 |
| 10R0.5, 1 | 75 | 30 | 10 | 3 |
| 10R05, 1 | 100 | 40 | 10 | 3 |
| 12R0.5,1,2,3 | 75 | 36 | 12 | 3 |
| 12R0.5,1,2,3 | 100 | 45 | 12 | 3 |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools established in 2011.
2. Which shipping method do you usually use?
We usually send goods by express like DHL, UPS, FedEx, ARAMEX, etc.
Send the goods to your shipping agent in China is also possible.
3. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
We also can accept CNY.
4. Can you produce customized carbide tools?
Yes, we can produce customized carbide tools according to your drawings or samples.
5. Can you do OEM?
Yes, we can make the laser engraving and customized label.
Laser engraving is free.
6. Do you have any discount for the large quantity?
Yes, we have the discount based on the purchase amount.
Welcome to send the inquiries to us.
7. How do you ensure the stability of quality?
Our company only cooperates with big reliable carbide rod
suppliers.
Only sells the carbide tools produced by ourselves.
So don't need to worry about the stability of quality.
|
|
