Changzhou Ruilida Tools Co., Ltd.
4 Years
| Ask Lasest Price | |
| Brand Name : | RLD Tools |
| Model Number : | HRC60 |
| Price : | Negotiable |
| Payment Terms : | T/T/PayPal/Credit Card |
| Supply Ability : | 100000pcs/month |
| Delivery Time : | 5-7 work days |

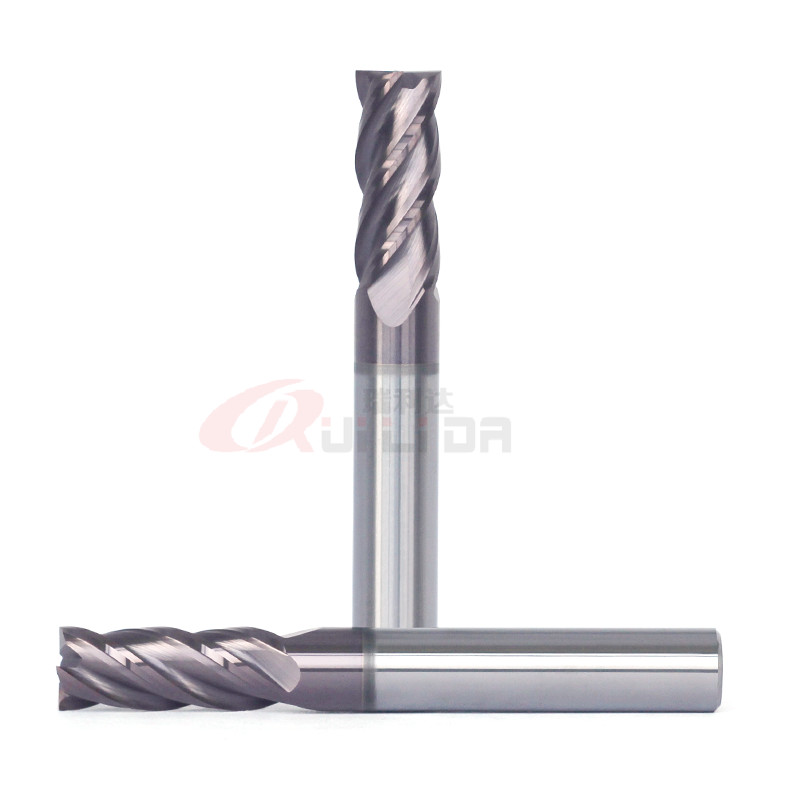

HRC60 4 Flute Solid Carbide End Mill For Stainless Steel 8mm End Mill Cutter
This series is with variable helix angle and unequal flute spacing
It’s can reduce the vibration while processing and easier for chip removal.
It's especially good for cutting stainless steel like 304, 316, 316L
| Product name | RLD HRC60 4 flute square solid carbide end mill 8mm |
| Specification | 8*20*60*6D*4F |
| Suitable for | Hardened steel, stainless steel, hard steel under HRC55, etc. |
| Machine type | Side Milling |
| Flutes | 4 |
| Coating | TiAlN/Customized |
| Helix | Variable Helix Angle |
| Co | 12% |
| HRA | 92.5 |
| TRS Min(N/mm²) | 4200 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | ZY10EF | 0.6μm | 91.8 | Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized according to requirement |
| RLD HRC60 Square End Mill Standard Size | ||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 1 | 50 | 2.5 | 4 | 4 |
| 1.5 | 50 | 4 | 4 | 4 |
| 2 | 50 | 5 | 4 | 4 |
| 2.5 | 50 | 6.5 | 4 | 4 |
| 3 | 50 | 7.5 | 3 | 4 |
| 3 | 50 | 7.5 | 4 | 4 |
| 3.5 | 50 | 9 | 4 | 4 |
| 4 | 50 | 10 | 4 | 4 |
| 4 | 75 | 14 | 4 | 4 |
| 4 | 100 | 18 | 4 | 4 |
| 5 | 50 | 13 | 5 | 4 |
| 5 | 50 | 13 | 6 | 4 |
| 6 | 50 | 15 | 6 | 4 |
| 6 | 75 | 21 | 6 | 4 |
| 6 | 100 | 27 | 6 | 4 |
| 8 | 60 | 20 | 8 | 4 |
| 8 | 75 | 30 | 8 | 4 |
| 8 | 100 | 35 | 8 | 4 |
| 10 | 75 | 25 | 10 | 4 |
| 10 | 100 | 40 | 10 | 4 |
| 12 | 75 | 30 | 12 | 4 |
| 12 | 100 | 45 | 12 | 4 |
| 14 | 100 | 45 | 14 | 4 |
| 16 | 100 | 45 | 16 | 4 |
| 18 | 100 | 45 | 18 | 4 |
| 20 | 100 | 45 | 20 | 4 |
| 6 | 150 | 35 | 6 | 4 |
| 8 | 150 | 50 | 8 | 4 |
| 10 | 150 | 55 | 10 | 4 |
| 12 | 150 | 60 | 12 | 4 |
| 14 | 150 | 65 | 14 | 4 |
| 16 | 150 | 65 | 16 | 4 |
| 18 | 150 | 65 | 18 | 4 |
| 20 | 150 | 75 | 20 | 4 |
More pictures
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools which established in 2011.
2. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machine.
ANCA is from Australia.
is from Germany.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
Our company also can send the parcels to the forwarder in China.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
We also can accept CNY (Chinese Yuan).
6. Can you produce special carbide tools?
Yes, we can produce special carbide tools according to your drawings or samples.
7. Do you have any discounts?
Yes, we have a discount based on the quantity.
8. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make
customized stickers.
9. Where is your factory.
Our factory is in Changzhou City, Jiangsu Province, China.
It’s around 1 hour from Shanghai by High-Speed Train.
|
|
