Changzhou Ruilida Tools Co., Ltd.
4 Years
| Ask Lasest Price | |
| Brand Name : | RLD Tools |
| Model Number : | HRC50 |
| Price : | Negotiable |
| Payment Terms : | T/T/PayPal/Credit Card |
| Supply Ability : | 1000000pcs/month |
| Delivery Time : | 5-7 work days |

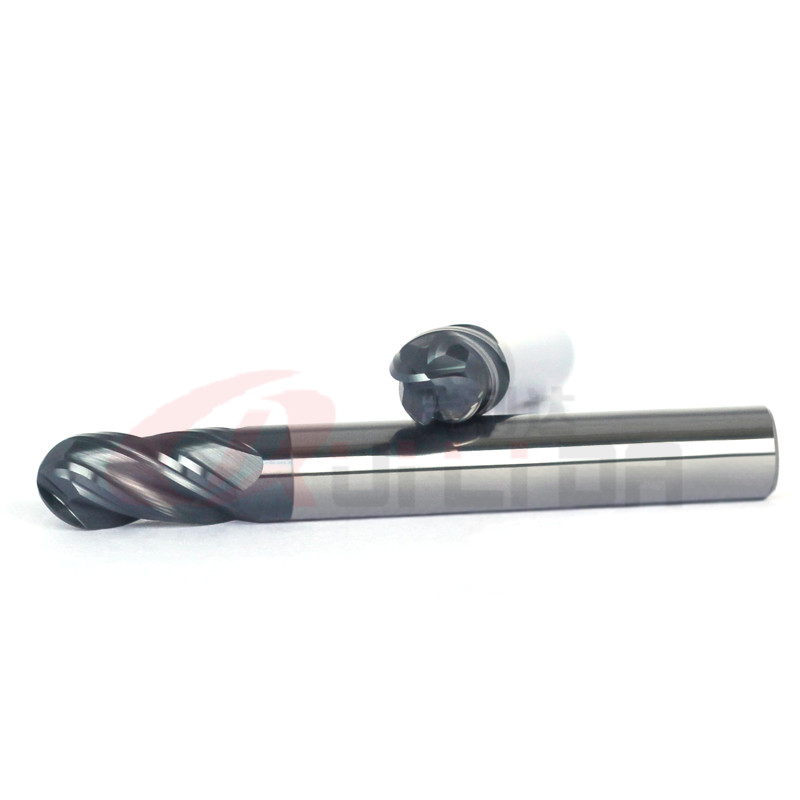

HRC50 Carbide 10mm Ball Nose CNC Milling Cutter 4 Flutes Ball Nose End Mill
| Product name | RLD HRC50 4 flute 10mm ball nose end mill |
| Specification | R5*20*75*10D*4F |
| Suitable for | Iron, cast iron, low alloy steel, etc. |
| Milling type | CNC Milling Machine |
| Flutes | 4 |
| Coating | AlTiN/Others |
| Helix | 30 |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 4000 |
| Flute Tolerance | Within 0/-0.02mm |
| Process machine | ANCA & |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | ZY10EF | 0.6μm | 91.8 | Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized |
| RLD HRC50 4F Carbide Ball Nose End Mill Standard Size | ||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 1 | 50 | 2 | 4 | 4 |
| 1.5 | 50 | 3 | 4 | 4 |
| 2 | 50 | 4 | 4 | 4 |
| 2.5 | 50 | 5 | 4 | 4 |
| 3 | 50 | 6 | 3 | 4 |
| 3 | 50 | 7.5 | 4 | 4 |
| 3.5 | 50 | 9 | 4 | 4 |
| 4 | 50 | 10 | 4 | 4 |
| 4 | 75 | 14 | 4 | 4 |
| 4 | 100 | 18 | 4 | 4 |
| 5 | 50 | 13 | 5 | 4 |
| 5 | 50 | 13 | 6 | 4 |
| 6 | 50 | 15 | 6 | 4 |
| 6 | 75 | 21 | 6 | 4 |
| 6 | 100 | 27 | 6 | 4 |
| 8 | 60 | 20 | 8 | 4 |
| 8 | 75 | 30 | 8 | 4 |
| 8 | 100 | 35 | 8 | 4 |
| 10 | 75 | 20 | 10 | 4 |
| 10 | 100 | 20 | 10 | 4 |
| 12 | 75 | 24 | 12 | 4 |
| 12 | 100 | 24 | 12 | 4 |
| 14 | 100 | 28 | 14 | 4 |
| 16 | 100 | 32 | 16 | 4 |
| 18 | 100 | 36 | 18 | 4 |
| 20 | 100 | 40 | 20 | 4 |
| 6 | 150 | 12 | 6 | 4 |
| 8 | 150 | 16 | 8 | 4 |
| 10 | 150 | 20 | 10 | 4 |
| 12 | 150 | 24 | 12 | 4 |
| 14 | 150 | 28 | 14 | 4 |
| 16 | 150 | 32 | 16 | 4 |
| 18 | 150 | 36 | 18 | 4 |
| 20 | 150 | 40 | 20 | 4 |
Our package
Step1: The end mill has been finished producing and sent to the warehouse
Step2: 1pcs put in a plastic film, 10pcs per group with a rubber band
Step3: Use the air bubble film to encase the plastic pipe
Step4: Put the goods encased with air bubble film in small packing cartons
Step5: Put another air bubble film on the goods and packaging
Step6: Sent by logistics company or express according to customer's need
FAQ
1. Are you a manufacturer or trading company?
We are a manufacturer of carbide tools established in 2011.
2. Which CNC grinding machines do you use?
All of our carbide end mills are produced by ANCA & machines.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, EMS, ARAMEX, ETC.
We also can ship the goods to your agent in China.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We can accept T/T/Credit Card/PayPal, etc.
We also can accept CNY.
6. Can you produce the customized carbide endmills?
Yes, we can produce customized carbide tools.
7. Where is your factory located?
Our factory is located in the east of China, Changzhou City.
8. What kind of inspection facilities do you have.
We have PG1000, Omega inspection facilities to check the precision
of each tool.
|
|
