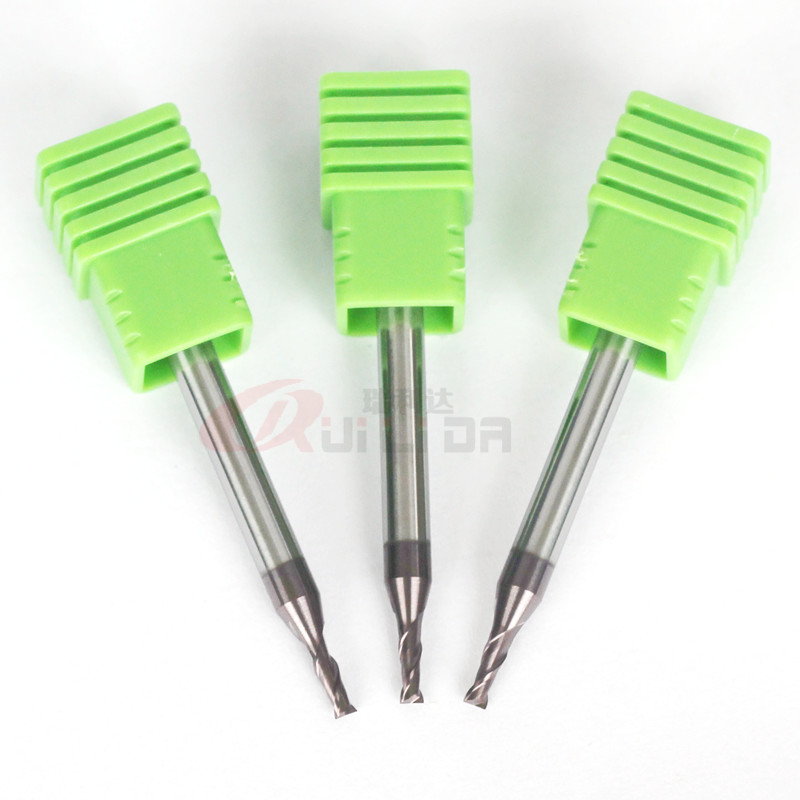

HRC60 2 Flute Solid Carbide End Mill 2mm End Mill Bits For 304 Stainless Steel
TiALN: High heat resistance, high oxidation resistance, nanocomposite coating with lubrication property.
| Product name | RLD HRC60 2 flute square solid carbide end mill 1mm |
| Specification | 2*5*50*4D*2F |
| Suitable for | Hardened steel, stainless steel, hard steel under HRC55, etc. |
| Machine type | Slot Milling |
| Flutes | 2 |
| Coating | TiAlN/Customized |
| Helix | Variable Helix Angle |
| Co | 12% |
| HRA | 92.5 |
| TRS Min(N/mm²) | 4200 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | ZY10EF | 0.6μm | 91.8 | Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized according to requirement |
| RLD HRC60 Square End Mill Standard Size | ||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 1 | 50 | 2.5 | 4 | 2 |
| 1.5 | 50 | 4 | 4 | 2 |
| 2 | 50 | 5 | 4 | 2 |
| 2.5 | 50 | 6.5 | 4 | 2 |
| 3 | 50 | 7.5 | 3 | 2 |
| 3 | 50 | 7.5 | 4 | 2 |
| 3.5 | 50 | 9 | 4 | 2 |
| 4 | 50 | 10 | 4 | 2 |
| 4 | 75 | 14 | 4 | 2 |
| 4 | 100 | 18 | 4 | 2 |
| 5 | 50 | 13 | 5 | 2 |
| 5 | 50 | 13 | 6 | 2 |
| 6 | 50 | 15 | 6 | 2 |
| 6 | 75 | 21 | 6 | 2 |
| 6 | 100 | 27 | 6 | 2 |
| 8 | 60 | 20 | 8 | 2 |
| 8 | 75 | 30 | 8 | 2 |
| 8 | 100 | 35 | 8 | 2 |
| 10 | 75 | 25 | 10 | 2 |
| 10 | 100 | 40 | 10 | 2 |
| 12 | 75 | 30 | 12 | 2 |
| 12 | 100 | 45 | 12 | 2 |
| 14 | 100 | 45 | 14 | 2 |
| 16 | 100 | 45 | 16 | 2 |
| 18 | 100 | 45 | 18 | 2 |
| 20 | 100 | 45 | 20 | 2 |
| 6 | 150 | 35 | 6 | 2 |
| 8 | 150 | 50 | 8 | 2 |
| 10 | 150 | 55 | 10 | 2 |
| 12 | 150 | 60 | 12 | 2 |
| 14 | 150 | 65 | 14 | 2 |
| 16 | 150 | 65 | 16 | 2 |
| 18 | 150 | 65 | 18 | 2 |
| 20 | 150 | 75 | 20 | 2 |
More pictures
FAQ
1. Are you a manufacturer or trading company?
Our company is especially producing carbide end mills, drill bits, and reamers.
2. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machine.
ANCA is imported from Australia. is imported from Germany.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
For large quantities, we can send by air or by sea.
Our company also can send the parcels to the forwarder in China.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
6. Can you produce special carbide tools?
Yes, we can produce special carbide tools according to your drawings or samples.
7. Do you have any discounts?
Yes, we have a discount based on the quantity.
Welcome to send inquiries to us.
|
|
