| Brand Name : | RLD Tools |
| Model Number : | HRC55 |
| Price : | Negotiable |
| Payment Terms : | T/T/PayPal/Credit Card |
| Supply Ability : | 30000pcs/month |
| Delivery Time : | 5-8 work days |
Solid carbide provides better rigidity than high-speed steel.
It is extremely heat resistant and used for high-speed applications
on cast iron, nonferrous materials, and other tough-to-machine
materials.
Spiral flutes are constructed of a high flute angle to remove chips
more easily.
AlTiSiN: Multilayer, higher nano hardness, extremely high heat resistance, very good thermal insulation.
Suitable for high-performance machining conditions.

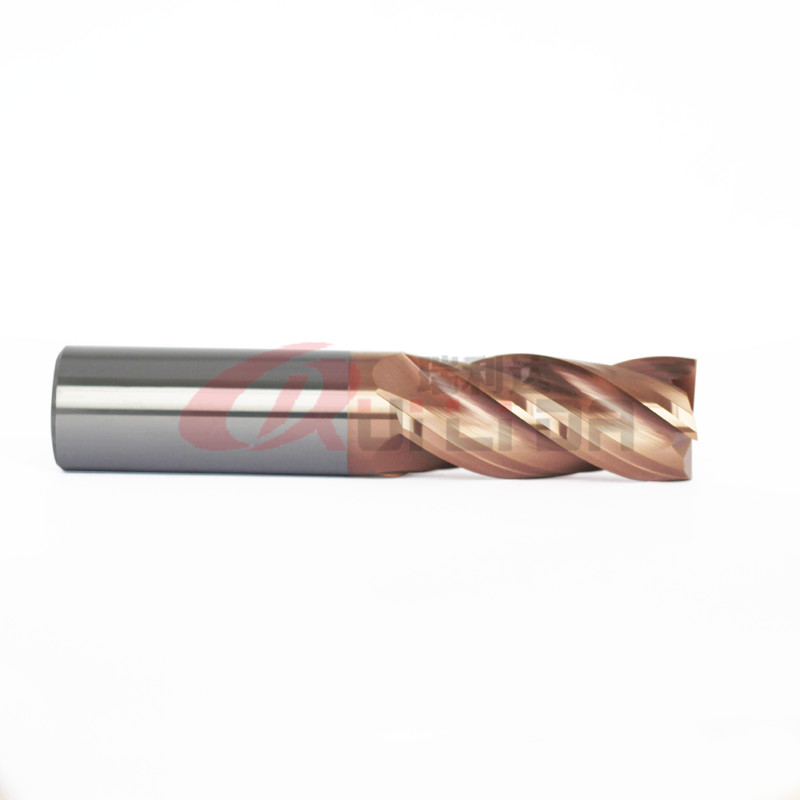

| Product name | HRC50 Imperial Milling Cutters 4 Flutes 1 Inch Carbide End Mill |
| Feature | Wide application |
| Suitable for | Alloy steel, stainless steel, iron, cast iron, etc. |
| Machine type | CNC milling machine |
| Flutes | 4 |
| Coating | AlTiSiN / customized |
| Helix | 35° |
| Co | 12% |
| HRA | 92.2 |
| TRS Min(N/mm²) | 4000 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 | Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized according to your requirement. |
Our package
Step1: The end mill has been finished producing and sent to the warehouse
Step2: 1pcs put in a plastic film, 10pcs per group with a rubber band
Step3: Use the air bubble film to encase the plastic pipe
Step4: Put the goods encased with air bubble film in small packing cartons
Step5: Put another air bubble film on the goods and packaging
Step6: Sent by logistics company or express according to customer's need

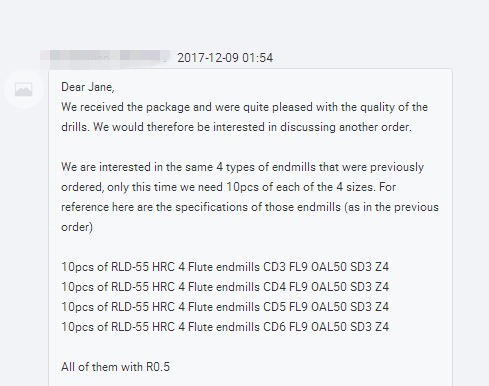

Clent's Feedback
FAQ
1. Do you prepare inch size carbide end mill in stock?
For inch size end mill, we usually don't prepare in stock.
Lead time is around 7-10 days.
2. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide end mills, drill bits, and reamers.
3. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machine.
The precision of ANCA & can be assured.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card),
PayPal, etc.
We also can accept the Chinese Yuan.
6. How about the MOQ (minimum quantity) for the customized Imperial
Milling Cutters?
The MOQ is from 5-20pcs depending on the exact sizes.
7. Do you have any discounts?
Yes, more quantity will enjoy more discount.
Welcome to send inquiry to us.
|
|
