Changzhou Ruilida Tools Co., Ltd.
4 Years
| Ask Lasest Price | |
| Brand Name : | RLD Tools |
| Model Number : | HRC55-R1 |
| Price : | EXW 2.6SD |
| Payment Terms : | T/T/PayPal/Credit Card |
| Supply Ability : | 800000pcs/month |
| Delivery Time : | 5-7 work days |

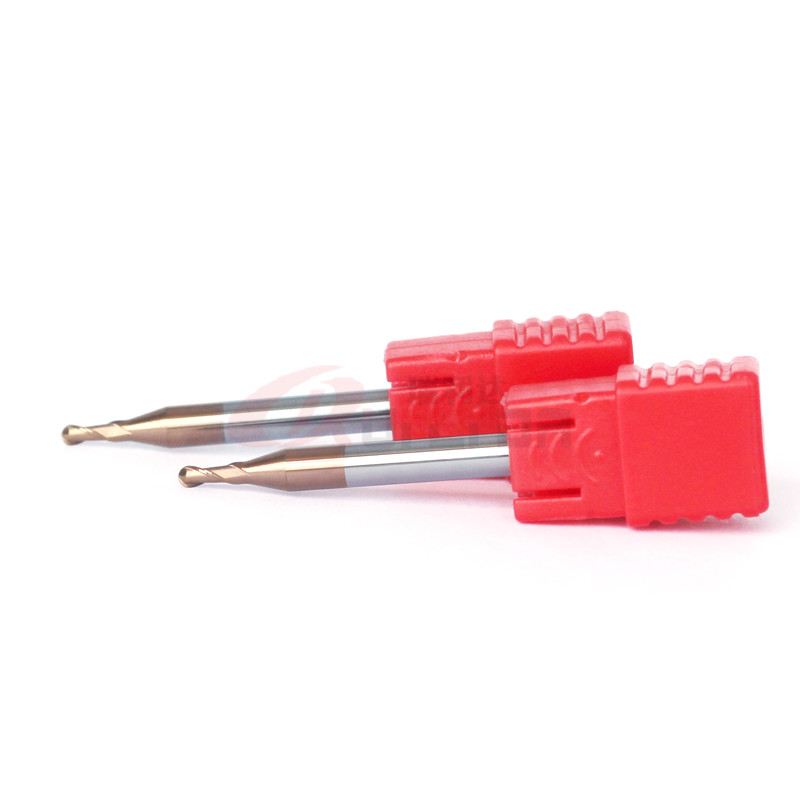

HRC55 Changzhou China Manufacturer Solid Ball Nose Mill 2mm Diameter R1 CNC Router Bits for Sale
| Product name | RLD HRC55 2 flutes 2mm ball nose end mill |
| Specification | R1*4*50*4D*2F |
| Suitable for | Alloy steel, Super Alloy Steel, Stainless Steel, etc. |
| Machine type | CNC Milling Machine |
| Flutes | 2 |
| Coating | AlTiSiN/Customized |
| Helix | 30° |
| Co | 12% |
| HRA | 92.2 |
| TRS Min(N/mm²) | 3800 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | ZY10EF | 0.6μm | 91.8 | Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating can be customized according to requirements |
| RLD HRC55 2F Carbide Ball Nose End Mill Standard Size | ||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 1 | 50 | 2 | 4 | 2 |
| 1.5 | 50 | 3 | 4 | 2 |
| 2 | 50 | 4 | 4 | 2 |
| 2.5 | 50 | 5 | 4 | 2 |
| 3 | 50 | 6 | 3 | 2 |
| 3 | 50 | 7.5 | 4 | 2 |
| 3.5 | 50 | 9 | 4 | 2 |
| 4 | 50 | 10 | 4 | 2 |
| 4 | 75 | 14 | 4 | 2 |
| 4 | 100 | 18 | 4 | 2 |
| 5 | 50 | 13 | 5 | 2 |
| 5 | 50 | 13 | 6 | 2 |
| 6 | 50 | 15 | 6 | 2 |
| 6 | 75 | 21 | 6 | 2 |
| 6 | 100 | 27 | 6 | 2 |
| 8 | 60 | 20 | 8 | 2 |
| 8 | 75 | 30 | 8 | 2 |
| 8 | 100 | 35 | 8 | 2 |
| 10 | 75 | 20 | 10 | 2 |
| 10 | 100 | 20 | 10 | 2 |
| 12 | 75 | 24 | 12 | 2 |
| 12 | 100 | 24 | 12 | 2 |
| 14 | 100 | 28 | 14 | 2 |
| 16 | 100 | 32 | 16 | 2 |
| 18 | 100 | 36 | 18 | 2 |
| 20 | 100 | 40 | 20 | 2 |
| 6 | 150 | 12 | 6 | 2 |
| 8 | 150 | 16 | 8 | 2 |
| 10 | 150 | 20 | 10 | 2 |
| 12 | 150 | 24 | 12 | 2 |
| 14 | 150 | 28 | 14 | 2 |
| 16 | 150 | 32 | 16 | 2 |
| 18 | 150 | 36 | 18 | 2 |
| 20 | 150 | 40 | 20 | 2 |
FAQ
1. Are you a manufacturer or trading company?
We are a manufacturer of carbide tools which established in 2011.
2. Which CNC grinding machines do you use?
All of our carbide end mills are produced by ANCA & machines.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, EMS, ARAMEX, TNT, ETC.
For large amount, we can send by air or by sea.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually lead time is around 5-10 business days.
5. Which payment methods do you accept?
We accept T/T/Credit Card/PayPal, etc.
6. Can you produce special carbide tools?
Yes, we can produce special carbide tools according to your drawings or samples.
7. Do you attend international exhibitions?
Yes, we had attended exhibitions in Indonesia, India, Russia, Thailand, Vietnam, etc.
8. How do you ensure the stability of quality?
We seldom change our rod suppliers.
And we only sell the tools produced by our own company.
So for the same grade, we can ensure the quality is the same.
|
|
