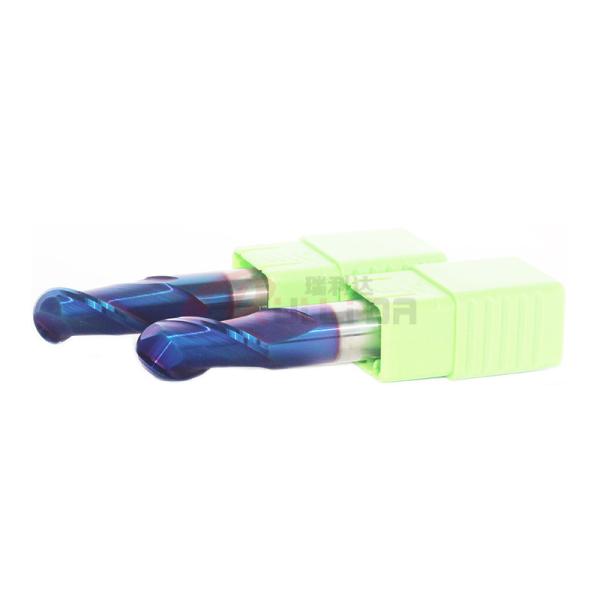

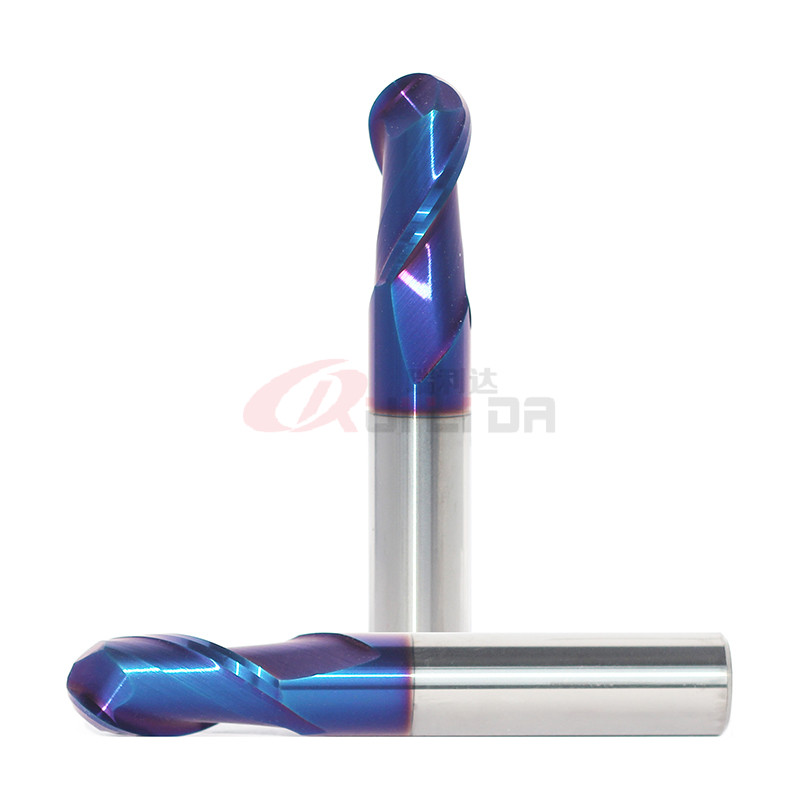

HRC65 12mm Just short of 1/2 Inch 2 Flutes Long Carbide Ball Nose End Mill for Die Steel
RLD End Mill Catalog in English.pdf
Good wear resistance by high-quality blue nano PVD coating
High precision edge tolerance
Reinforced edge design for preventing edge chipping
Outstanding performance at high-speed machining by ultra-fine
micro-grain carbide (0.2μm)
This is a high hardness ball nose end mill,
Especially good for the hardened mold steel above HRC58.
| Product name | 12mm 2 Flutes Carbide Ball Nose End Mill |
| Specification | R6*12*75*12D*2F/customized |
| Suitable for | High hardness mold steel, titanium, etc. |
| Machine type | CNC Milling Machine |
| Flutes | 2 |
| Coating | Blue coating |
| Helix | 30° |
| Co | 9% |
| HRA | 93.5-94.3 |
| TRS Min(N/mm²) | 4100 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | ZY10EF | 0.6μm | 91.8 | Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| Coating also can be customized |
| RLD HRC65 2 Flutes Carbide High Hardness Ball Nose End Mill | ||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 1 | 50 | 2 | 4 | 2 |
| 1.5 | 50 | 3 | 4 | 2 |
| 2 | 50 | 4 | 4 | 2 |
| 2.5 | 50 | 5 | 4 | 2 |
| 3 | 50 | 6 | 3 | 2 |
| 3 | 50 | 7.5 | 4 | 2 |
| 3.5 | 50 | 9 | 4 | 2 |
| 4 | 50 | 10 | 4 | 2 |
| 4 | 75 | 14 | 4 | 2 |
| 4 | 100 | 18 | 4 | 2 |
| 5 | 50 | 13 | 5 | 2 |
| 5 | 50 | 13 | 6 | 2 |
| 6 | 50 | 15 | 6 | 2 |
| 6 | 75 | 21 | 6 | 2 |
| 6 | 100 | 27 | 6 | 2 |
| 8 | 60 | 20 | 8 | 2 |
| 8 | 75 | 30 | 8 | 2 |
| 8 | 100 | 35 | 8 | 2 |
| 10 | 75 | 20 | 10 | 2 |
| 10 | 100 | 20 | 10 | 2 |
| 12 | 75 | 24 | 12 | 2 |
| 12 | 100 | 24 | 12 | 2 |
| 14 | 100 | 28 | 14 | 2 |
| 16 | 100 | 32 | 16 | 2 |
| 18 | 100 | 36 | 18 | 2 |
| 20 | 100 | 40 | 20 | 2 |
| 6 | 150 | 12 | 6 | 2 |
| 8 | 150 | 16 | 8 | 2 |
| 10 | 150 | 20 | 10 | 2 |
| 12 | 150 | 24 | 12 | 2 |
| 14 | 150 | 28 | 14 | 2 |
| 16 | 150 | 32 | 16 | 2 |
| 18 | 150 | 36 | 18 | 2 |
| 20 | 150 | 40 | 20 | 2 |
Our package
Step1: The end mill has been finished producing and sent to the warehouse
Step2: 1pcs put in a plastic film, 10pcs per group with a rubber band
Step3: Use the air bubble film to encase the plastic pipe
Step4: Put the goods encased with air bubble film in small packing cartons
Step5: Put another air bubble film on the goods and packaging
Step6: Sent by logistics company or express according to customer's need
FAQ
1. Are you a manufacturer or trading company?
We are a manufacturer of carbide end mills, drill bits, and reamers.
2. What kind of grinding wheels do you use?
We are using WINTER brand grinding wheels.
They are imported from Germany.
High-quality grinding wheel is also important for the quality of
carbide tools.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ETC.
We also can send the goods to your shipping agent in China.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
CNY is also acceptable.
6. Can you produce special carbide tools?
Yes, we can produce special carbide tools according to your drawings or samples.
7. Do you have any discounts?
Yes, we have a discount based on the quantity.
8. Can you do OEM?
Yes, we can engrave your logo on the tool's shank and make
customized stickers.
|
|
