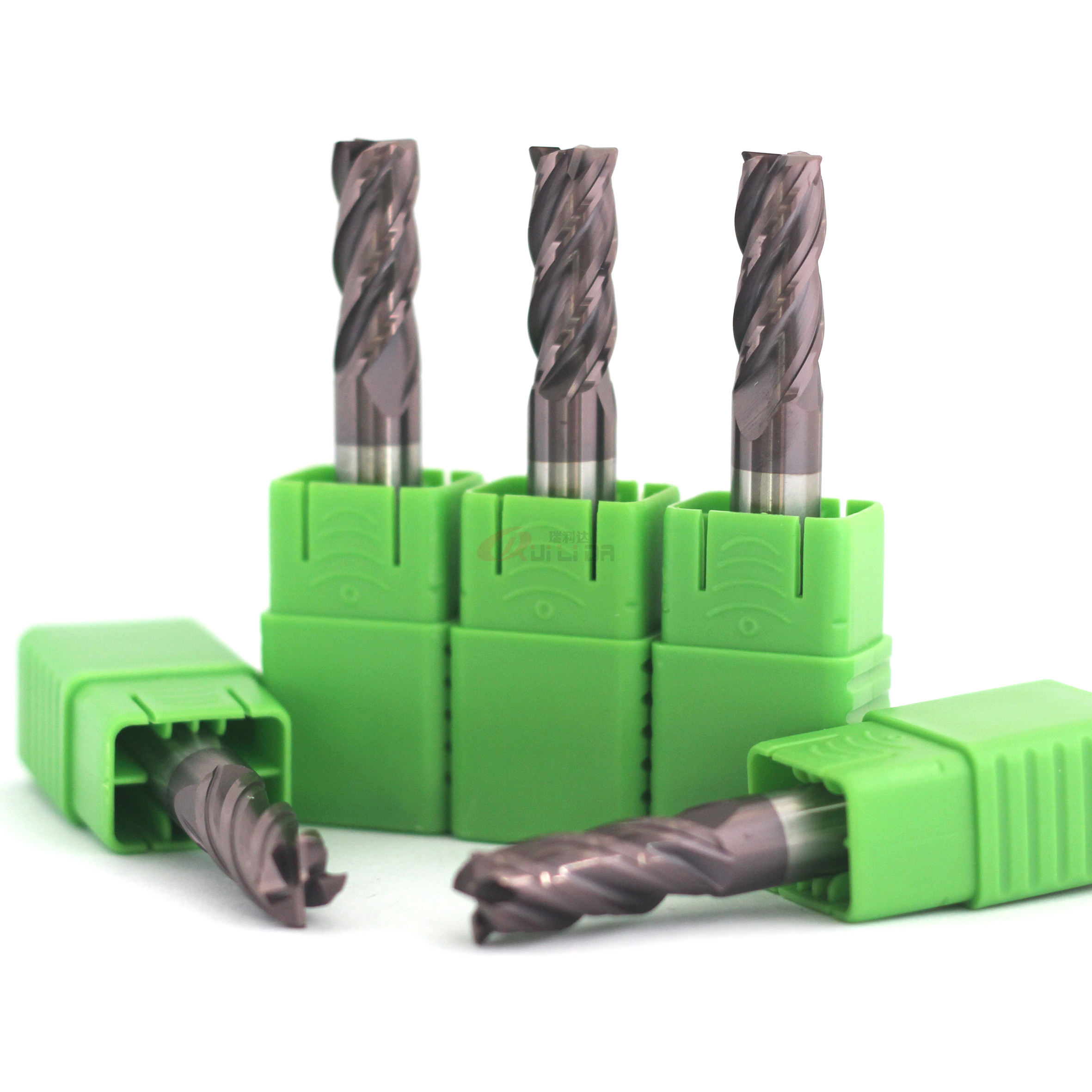

HRC60 4 Flute CNC End Mill 12R0.5 Corner Radius End Mill For CNC Milling Machine
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN.
As a result, it is particularly advantageous for higher-speed operations in a variety of steel machining applications.
This corner radius end mill is with Variable helix and unequal flute spacing.
Especially good for cutting the stainless steel.
| Product name | RLD HRC55 corner radius end mill 12R0.5 |
| Size | 12R0.5*30*75*12D*4F |
| Suitable for | P20, mold steel, alloy steel stainless steel, etc |
| Machine type | CNC milling machine |
| Flutes | 4 |
| Coating | TiAlN |
| Helix angle | 35° |
| Co | 12% |
| HRA | 92.5 |
| TRS Min(N/mm²) | 4100 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 | Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| The coating also can be customized according to the requirement |
RLD Corner Radius End Mill Standard Size | ||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 2 (R0.2, 0.5) | 50 | 5 | 4 | 4 |
| 3 (R0.2, 0.5) | 50 | 8 | 4 | 4 |
| 4 (R0.2, 0.5) | 50 | 10 | 4 | 4 |
| 4 (R0.2, 0.5) | 75 | 12 | 4 | 4 |
| 4 (R0.2, 0.5) | 100 | 16 | 4 | 4 |
| 5 (R0.5,1) | 50 | 13 | 6 | 4 |
| 6 (R0.5,1) | 50 | 15 | 6 | 4 |
| 6 (R0.5,1) | 75 | 18 | 6 | 4 |
| 6 (R0.5,1) | 100 | 24 | 6 | 4 |
| 8 (R0.5,1) | 60 | 20 | 8 | 4 |
| 8 (R0.5,1) | 75 | 24 | 8 | 4 |
| 8(R0.5,1) | 100 | 32 | 8 | 4 |
| 10 (R0.5,1) | 75 | 25 | 10 | 4 |
| 10 (R0.5,1) | 100 | 30 | 10 | 4 |
| 12 (R0.5,1) | 75 | 30 | 12 | 4 |
| 12 (R0.5,1) | 100 | 36 | 12 | 4 |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools was established in 2011.
2. Which CNC grinding machine do you use?
All of our carbide tools are produced by ANCA & machines.
3. Which shipping method do you usually use?
We usually send goods by express like FedEx, UPS, DHL, TNT, EMS, ARAMEX, ETC.
Our company also can ship the parcels to your forwarder in China.
4. How about the delivery time?
For stock items, we can dispatch within 2 business days after receiving payment.
For the out-of-stock items, it depends on the quantity.
Usually is around 5-7 business days.
5. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
6. What's the advantage of the variable helix and unequal flute spacing?
It's good for chip removal and anti-vibration.
|
|
