| Brand Name : | RLD Tools |
| Model Number : | HRC50 |
| Price : | Negotiable |
| Payment Terms : | T/T/PayPal/Credit Card |
| Supply Ability : | 100000pcs/month |
| Delivery Time : | 5-8 work days |

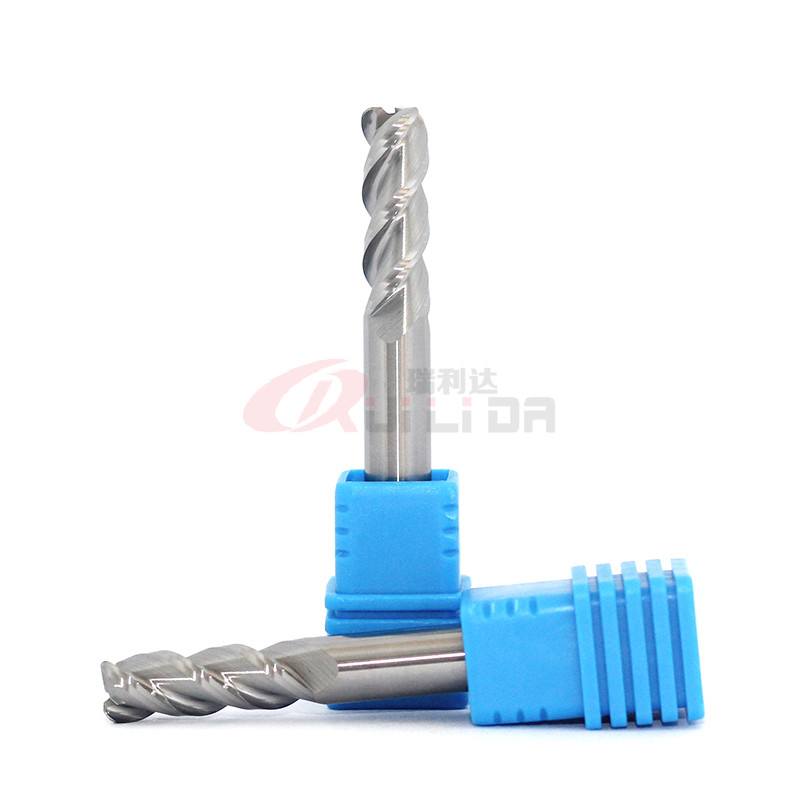

HRC50 3 Flute Aluminum End Mill 6R1 Solid Carbide Corner Corner Rounding Tool
High Helix End Mills for Aluminum Alloys - 45° Helix - Square features a 3 flute, high helix design for improved results in aluminum and other non-ferrous applications.
| Product name | RLD HRC50 3 flute Corner Radius Aluminum End Mill 6R1 |
| Size | 6R1×15×50×6D×3F |
| Suitable for | Aluminum, plastic, brass, resin, etc. |
| Feature | Finishing |
| Flute Number | 3 |
| Coating | Uncoated/Others |
| Helix angle | 30 |
| Co | 10% |
| HRA | 91.8 |
| TRS Min(N/mm²) | 4000 |
| Tolerance | Within 0/-0.02mm |
| Processing machine | ANCA/ |
Carbide Raw Material Introduction
| End mill grade | Carbide rod | Grain size | HRA | Application |
| HRC50 | YG10X | 0.6μm | 91.8 | Aluminum, iron, low alloy steel, general steel under hardness HRC45 |
| HRC55 | WF25 | 0.6μm | 92.2 | Cast Iron, Alloy Steel, General steel under hardness HRC50 |
| HRC60 | GU25UF | 0.4μm | 92.5 | Super Alloy Steel, Stainless Steel, Titanium, Inconel, Hardened Steel under hardness HRC55 |
| HRC65 | GU092 | 0.2μm | 93.5 | Alloy Steel, Hardened Steel under hardness HRC62 |
Coating Introduction
| Coating name | Color | Thickness | Hardness | Friction | The Max ℃ |
| AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 |
| AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 |
| TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 |
| Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 |
| AlCrN | Dark grey | 1.5-3 | 3500 | 0.3 | 1250 |
| DLC | Black | 1-3 | 1800 | 0.1 | 350 |
| Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 |
| The coating also can be customized |
| RLD 3F HRC50 Corner Radius Aluminum End Mill Standard Size | ||||
| Flute Dia(mm) | Overall Length(mm) | Cutting Length(mm) | Shank Dia(mm) | Flutes |
| 1R0.2 | 50 | 3 | 4 | 3 |
| 2R0.2 | 50 | 6 | 4 | 3 |
| 3R0.2, 0.5 | 50 | 9 | 4 | 3 |
| 4R0.2, 0.5 | 50 | 12 | 4 | 3 |
| 6R0.5, 1 | 50 | 18 | 6 | 3 |
| 6R0.5, 1 | 75 | 24 | 6 | 3 |
| 60.5, 1 | 100 | 30 | 6 | 3 |
| 8R0.5, 1 | 60 | 24 | 8 | 3 |
| 8R0.1, 1 | 75 | 32 | 8 | 3 |
| 8R0.5, 1 | 100 | 40 | 8 | 3 |
| 10R0.5, 1 | 75 | 30 | 10 | 3 |
| 10R05, 1 | 100 | 40 | 10 | 3 |
| 12R0.5,1,2,3 | 75 | 36 | 12 | 3 |
| 12R0.5,1,2,3 | 100 | 45 | 12 | 3 |
FAQ
1. Are you a manufacturer or trading company?
We are a professional manufacturer of carbide tools established in 2011.
2. Which shipping method do you usually use?
We usually send goods by express like DHL, UPS, FedEx, ARAMEX, etc.
For the large quantity, we can send by air or by sea.
Our company also can send the parcels to your shipping agent in China.
3. Which payment methods do you accept?
We accept T/T, Trade Assurance Order on Alibaba(credit card), PayPal, etc.
We also can accept the Chinese Yuan.
4. Can you produce customized carbide tools?
Yes, we can produce customized carbide tools according to your drawings or samples.
5. Can you do OEM?
Yes, we can make the laser engraving and customized label.
6. What kind of grinding machines are you using now?
We are using ANCA & machines for all of our end mills.
7. What kind of inspection facilities do you have.
We have PG1000, Omega inspection facilities to ensure the precision
of each tool.
8. Do you have any discounts?
Yes, more quantity will enjoy more discount.
Welcome to send inquiry to us.
|
|
